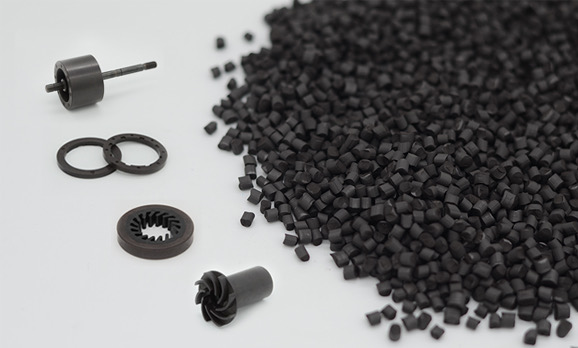

材料性能特性 Material Properties | 磁性粉:铁氧体Magnetic powder: Ferrite | ||||||||
树脂:Base resin: PA6 工作温度:Working Temperature: -20℃ to +150℃ |

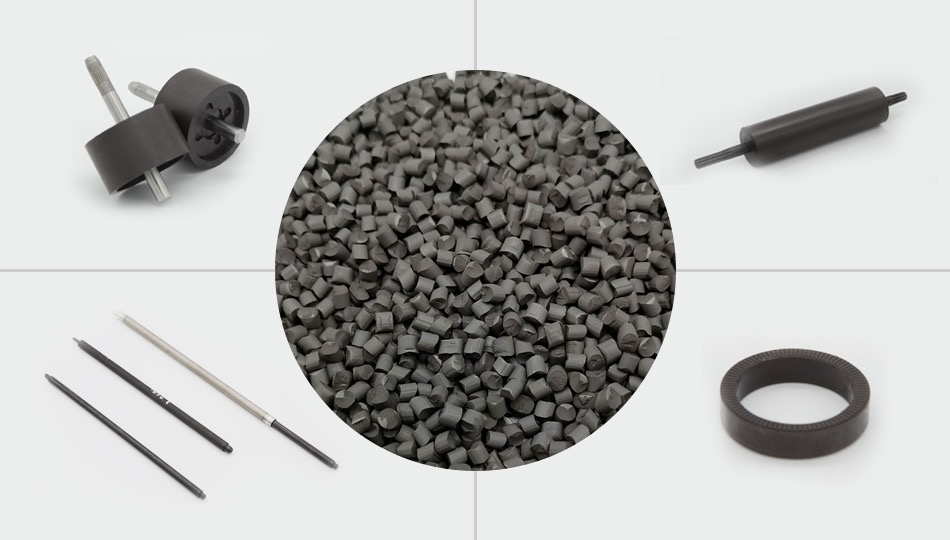

|||||||||
材料牌号Material Model | MF-613 | MF-614 | MF-616 | MF-617 | MF-618 | MF-620 | MF-621 | MF-622 | |
磁气特性MAGNGTIC PROPERTIES | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | |
残留磁束密度Residual flux density (Br) | mT | 240 | 240 | 262 | 270 | 277 | 290 | 295 | 304 |
残留磁束密度Residual flux density (Br) | GS | 2400 | 2400 | 2620 | 2700 | 2770 | 2900 | 2950 | 3040 |
保磁力Coercive force (bHc) | KA/m | 168 | 171 | 190 | 190 | 187 | 182 | 178 | 198 |
保磁力Coercive force (bHc) | Oe | 2111 | 2149 | 2388 | 2388 | 2350 | 2287 | 2237 | 2488 |
固有保磁力Intrinsic coercive force (iHc) | KA/m | 230 | 235 | 240 | 230 | 228 | 217 | 210 | 243 |
固有保磁力Intrinsic coercive force (iHc) | Oe | 2890 | 2953 | 3016 | 2890 | 2865 | 2727 | 2639 | 3054 |
最大磁能积Maximum energy product (Bhmax) | KJ/m3 | 11.1 | 11.1 | 13.3 | 14.2 | 15 | 16.3 | 17 | 17.9 |
最大磁能积Maximum energy product (Bhmax) | MGOe | 1.39 | 1.39 | 1.67 | 1.78 | 1.88 | 2.05 | 2.14 | 2.25 |
温度系数Thermal coefficient (Br/Br) | %/0C | -0.19 | -0.19 | -0.19 | -0.19 | -0.19 | -0.19 | -0.19 | -0.19 |
温度系数Thermal coefficient (Hc/Hc) | %/0C | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
拉伸强度Tensile strength | MPa | 100 | 102 | 90 | 70 | 73 | 83 | 73 | 70 |
弯曲强度Flexural strength | MPa | 185 | 189 | 170 | 160 | 167 | 173 | 157 | 166 |
比重Specific gravity | g/cm3 | 3.3 | 3.3 | 3.45 | 3.45 | 3.60 | 3.73 | 3.8 | 3.88 |
材料性能特性Material Properties | 磁性粉:Magnetic powder: 铁氧体Ferrite | ||||||||
树脂:Base resin: PA12 工作温度:Working Temperature: -40℃ to +120℃ |
树脂:Base resin: PPS 工作温度:Working Temperature: -40℃ to +150℃ |
||||||||
材料牌号Material Model | MF-1212 | MF-1216 | MF-1218 | MF-1219 | MF-1220 | MF-2213 | MF-2216 | MF-2218 | |
磁气特性MAGNGTIC PROPERTIES | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | 异方性ANISOTROPIC | |
残留磁束密度Residual flux density (Br) | mT | 227 | 257 | 270 | 283 | 288 | 237 | 258 | 267 |
残留磁束密度Residual flux density (Br) | Gs | 2270 | 2570 | 2700 | 2830 | 2880 | 2370 | 2580 | 2670 |
保磁力Coercive force (bHc) | KA/m | 171 | 194 | 185 | 188 | 187 | 174 | 160 | 175 |
保磁力Coercive force (bHc) | Oe | 2145 | 2438 | 2325 | 2320 | 2350 | 2187 | 2011 | 2199 |
固有保磁力Intrinsic coercive force (iHc) | KA/m | 280 | 264 | 235 | 228 | 227 | 204 | 190 | 225 |
固有保磁力Intrinsic coercive force (iHc) | Oe | 3516 | 3318 | 2953 | 2865 | 2853 | 2564 | 2388 | 2827 |
最大磁能积Maximum energy product (Bhmax) | KJ/m3 | 10 | 13 | 14.3 | 15.6 | 16.2 | 11 | 13 | 13.8 |
最大磁能积Maximum energy product(Bhmax) | MGOe | 1.26 | 1.63 | 1.80 | 1.96 | 2.04 | 1.38 | 1.63 | 1.73 |
温度系数Thermal coefficient (Br/Br) | %/0C | -0.19 | -0.19 | -0.19 | -0.19 | -0.19 | 0.19 | 0.19 | 0.19 |
温度系数Thermal coefficient (Hc/Hc) | %/0C | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
拉伸强度Tensile strength | MPa | 62 | 59 | 59 | 57 | 45.5 | 58 | 55 | 50 |
弯曲强度Flexural strength | MPa | 105 | 121 | 112 | 106 | 90.6 | 125 | 95 | 93 |
比重Specific gravity | g/cm3 | 3.08 | 3.4 | 3.52 | 3.63 | 3.7 | 3.34 | 3.55 | 3.6 |
材料性能特性Material Properties | 磁性粉:Magnetic powder: 钕铁硼NdFeB | |||||||
树脂:Base resin:PA12 工作温度:Working Temperature: -40℃ to +120℃ |
树脂:Base resin:PPS 工作温度:Working Temperature: -40℃ to +150℃ |
|||||||
材料牌号Material Model | MND-1240 | MND-1250 | MND-1260 | MND-1280 | MND-2240 | MND-2250 | MND-2260 | |
磁气特性MAGNGTIC PROPERTIES | 等方性ISOTROPIC | 等方性ISOTROPIC | 等方性ISOTROPIC | 等方性ISOTROPIC | 等方性ISOTROPIC | 等方性ISOTROPIC | 等方性ISOTROPIC | |
残留磁束密度Residual flux density (Br) | mT | 450 | 502 | 550 | 625 | 435 | 490 | 530 |
残留磁束密度Residual flux density (Br) | Gs | 4500 | 5020 | 5500 | 6250 | 4350 | 4900 | 5300 |
保磁力Coercive force (bHc) | KA/m | 311 | 335 | 365 | 398 | 300 | 322 | 344 |
保磁力Coercive force(bHc) | Oe | 3908 | 4210 | 4587 | 5000 | 3770 | 4046 | 4323 |
固有保磁力Intrinsic coercive force(iHc) | KA/m | 690 | 724 | 728 | 724 | 680 | 690 | 693 |
固有保磁力Intrinsic coercive force (iHc) | Oe | 8671 | 9098 | 9148 | 9100 | 8545 | 8671 | 8709 |
最大磁能积Maximum energy product (Bhmax) | KJ/m3 | 35 | 43 | 50 | 62.1 | 32 | 39.8 | 46.2 |
最大磁能积Maximum energy product (Bhmax) | MGOe | 4.40 | 5.40 | 6.28 | 8.00 | 4.02 | 5.00 | 5.81 |
温度系数Thermal coefficient (Br/Br) | %/0C | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 |
温度系数Thermal coefficient (Hc/Hc) | %/0C | -0.4 | -0.4 | -0.4 | -0.4 | -0.4 | -0.4 | -0.4 |
拉伸强度Tensile strength | MPa | 62 | 60 | 52 | 39.7 | 75 | 70 | 63 |
弯曲强度Flexural strength | MPa | 116 | 110 | 90 | 61 | 123 | 119 | 107 |
比重Specific gravity | g/cm3 | 4.6 | 5.0 | 5.3 | 5.6 | 4.8 | 5 | 5.3 |
树脂Resin | 磁粉Magnetic Powder | 取向性能Directional Property | 牌号Grade | 磁性能Magnetic Properties | 其他性能Other Properties | ||||||||||
Br | Hcb | Hcj | (BH)max | α (Br) | β (Hcj) | 密度 Destiny | 弯曲强度 Flexural Strength | ||||||||
kG | T | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | %/K | %/K | g/cm3 | MPa | ||||
PA12 | 钐铁氮+铁氧体 SmFeN+Ferrite | Anisotropic | MSF-1230 | 3.72 | 0.37 | 2.67 | 213 | 4.22 | 336 | 3.2 | 25.5 | -0.13 | -0.35 | 3.61 | 98 |
MSF-1240 | 4.48 | 0.45 | 2.76 | 220 | 5 | 398 | 4.07 | 32.4 | -0.09 | -0.48 | 3.7 | 91 | |||
钐铁氮SmFeN | MS-1260 | 5.21 | 0.52 | 4.39 | 349 | 7.23 | 576 | 6.32 | 50.3 | -0.07 | -0.48 | 3.62 | 92 | ||
MS-1280 | 6.02 | 0.6 | 4.66 | 371 | 6.6 | 525 | 8.13 | 64.7 | -0.08 | -0.48 | 4.11 | 91 | |||
MS-1290 | 6.39 | 0.64 | 5.02 | 400 | 6.91 | 550 | 9.45 | 75.2 | -0.08 | -0.48 | 4.33 | 88 | |||
钕铁硼NdFeB | MN-12120 | 7.86 | 0.79 | 5.79 | 461 | 10.8 | 860 | 12.7 | 101.1 | -0.12 | -0.59 | 4.92 | 86 | ||
MN-12140 | 8.21 | 0.82 | 6.29 | 501 | 12.6 | 1003 | 14.2 | 113 | -0.13 | -0.59 | 5.11 | 84 | |||
钕铁硼+钐铁氮NdFeB+SmFeN | MSN-12100 | 6.89 | 0.69 | 5.12 | 408 | 8.81 | 701 | 10.3 | 82 | -0.1 | -0.57 | 4.45 | 99 | ||
MSN-12120 | 7.81 | 0.78 | 5.7 | 454 | 10.2 | 812 | 12.47 | 99.3 | -0.1 | -0.57 | 4.95 | 91 |

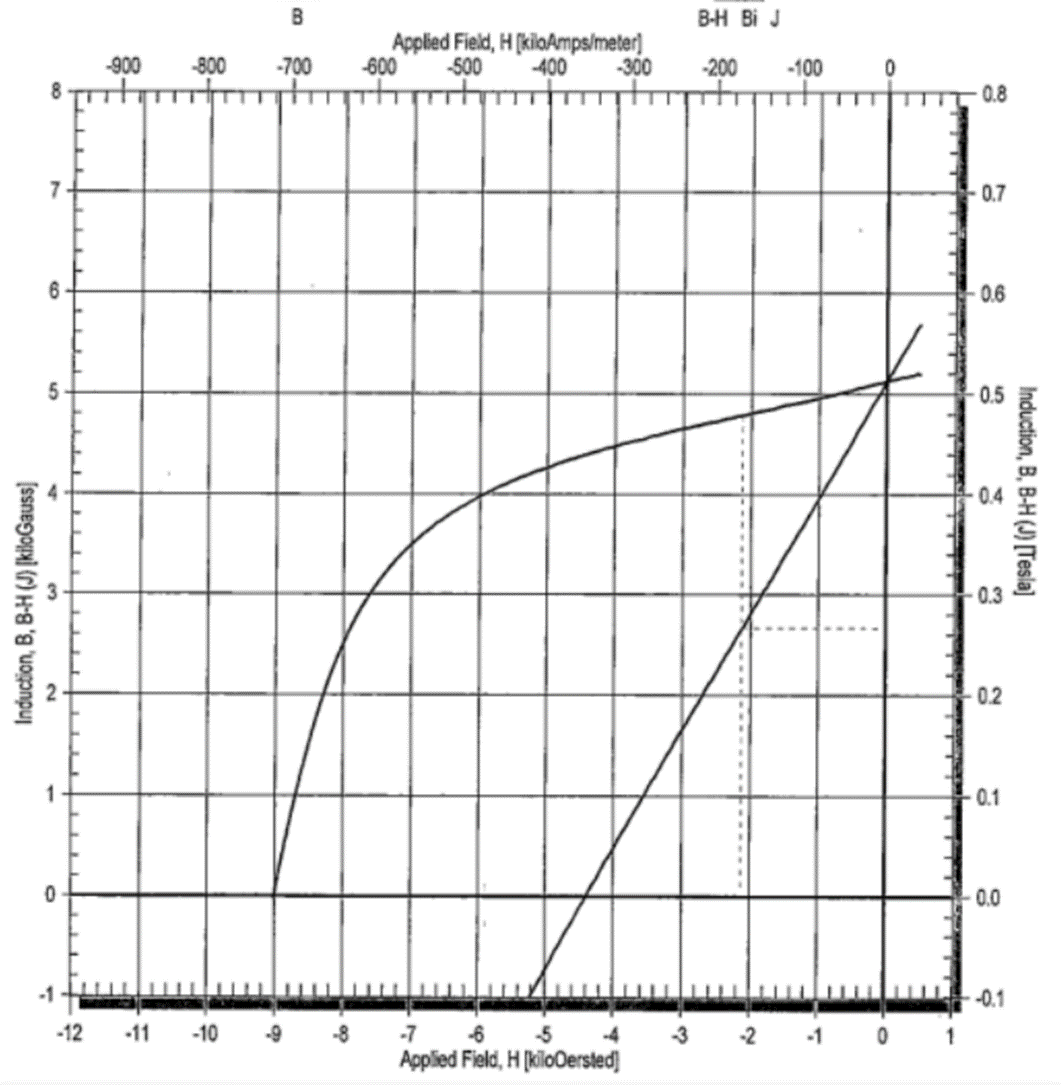

钕铁硼退磁曲线
铁氧体退磁曲线

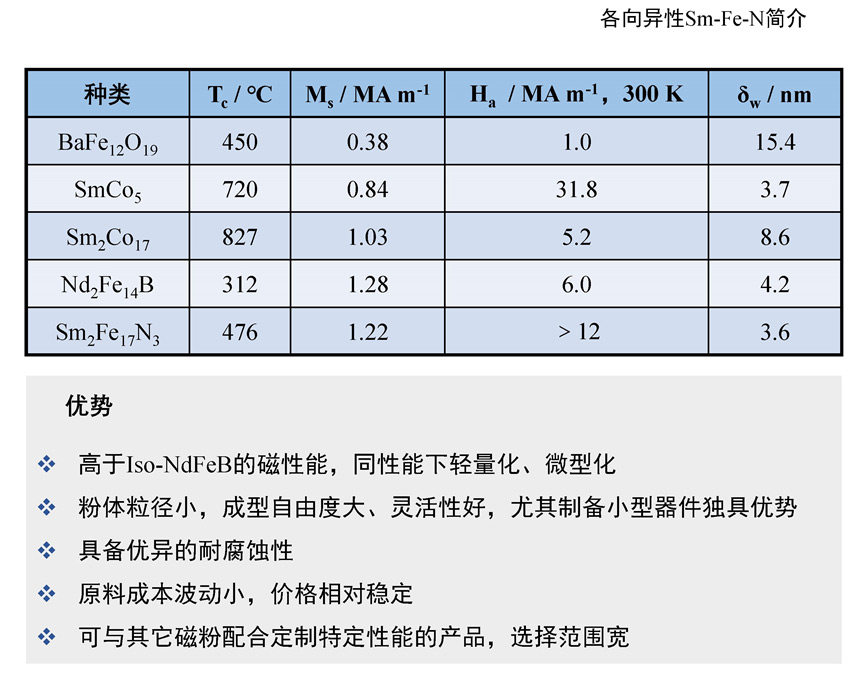

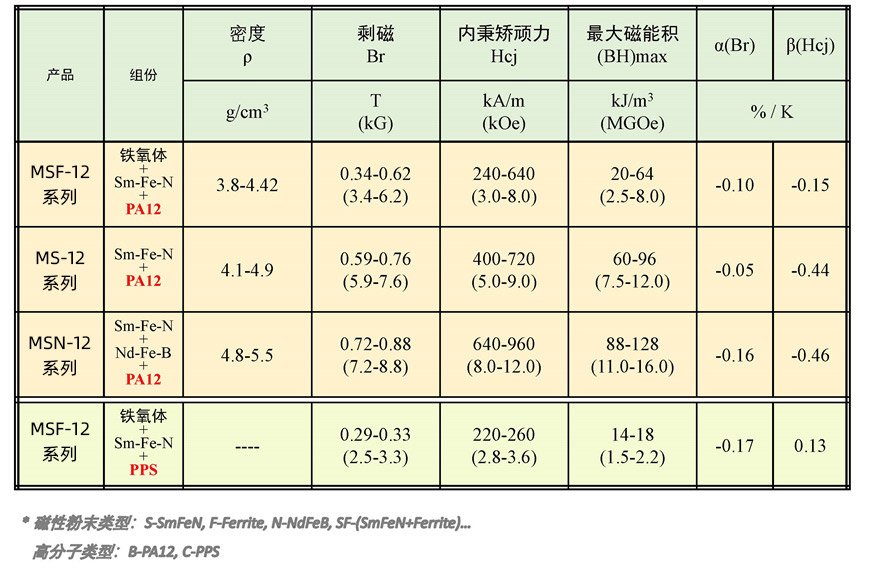

Introduction of Anisotropic Injection SmFeN
各向异性Sm-Fe-N简介

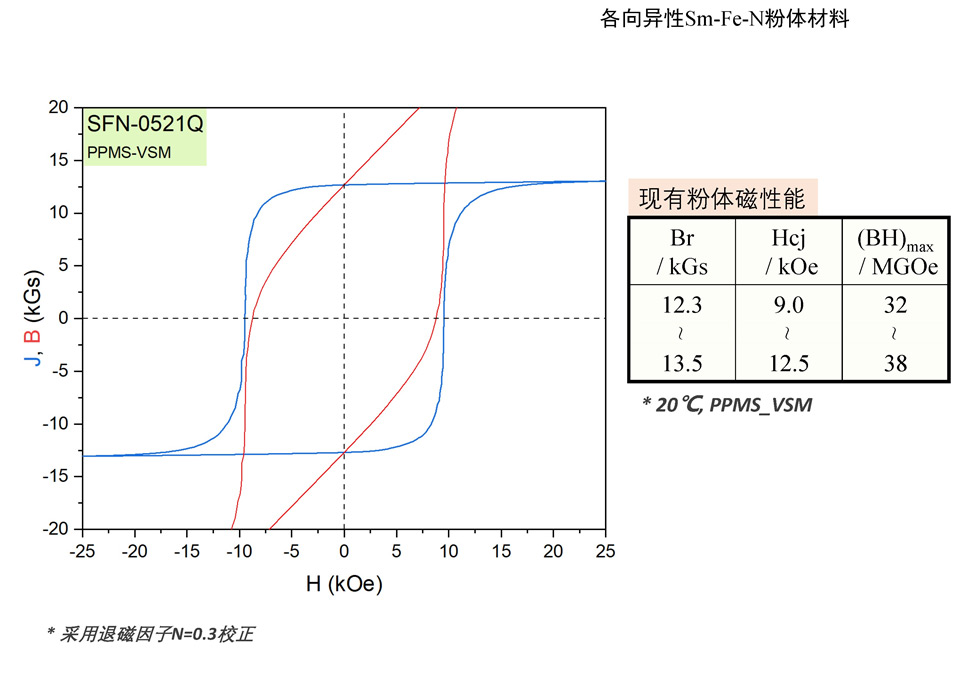

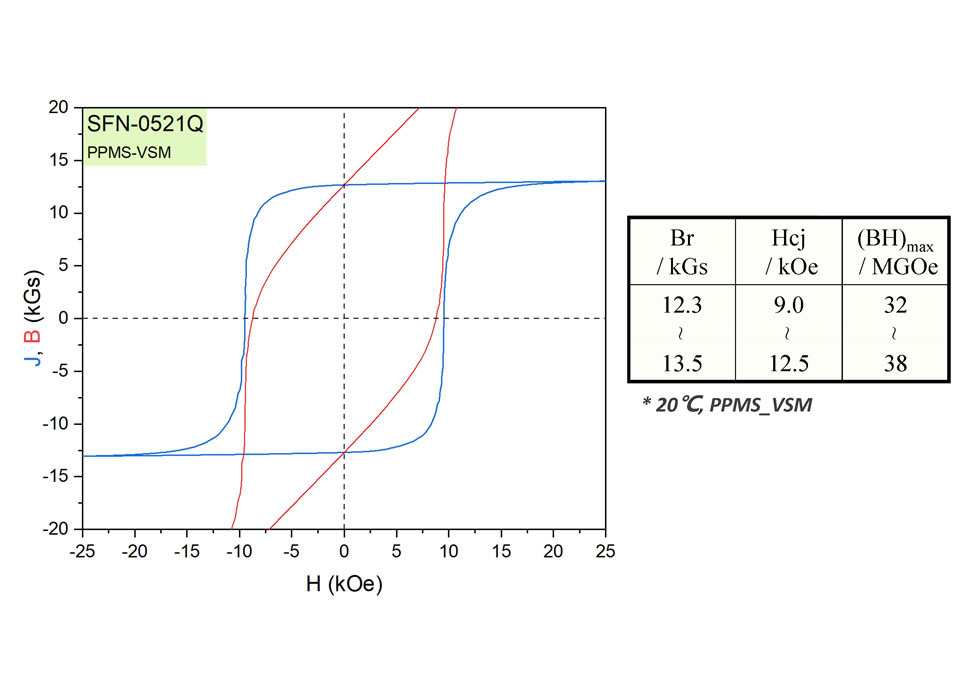

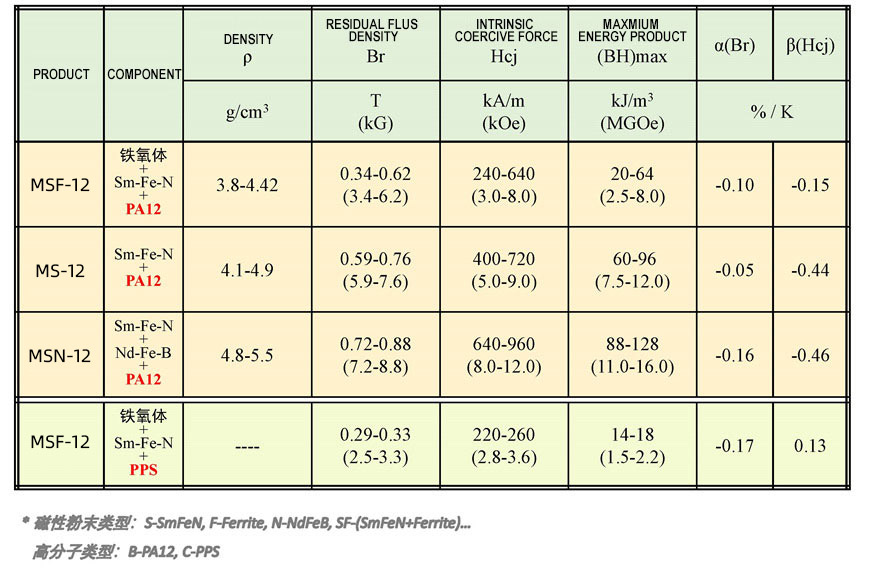

Magnetic Property of Anisotropic SmFeN Powder
各向异性Sm-Fe-N粉体磁性能

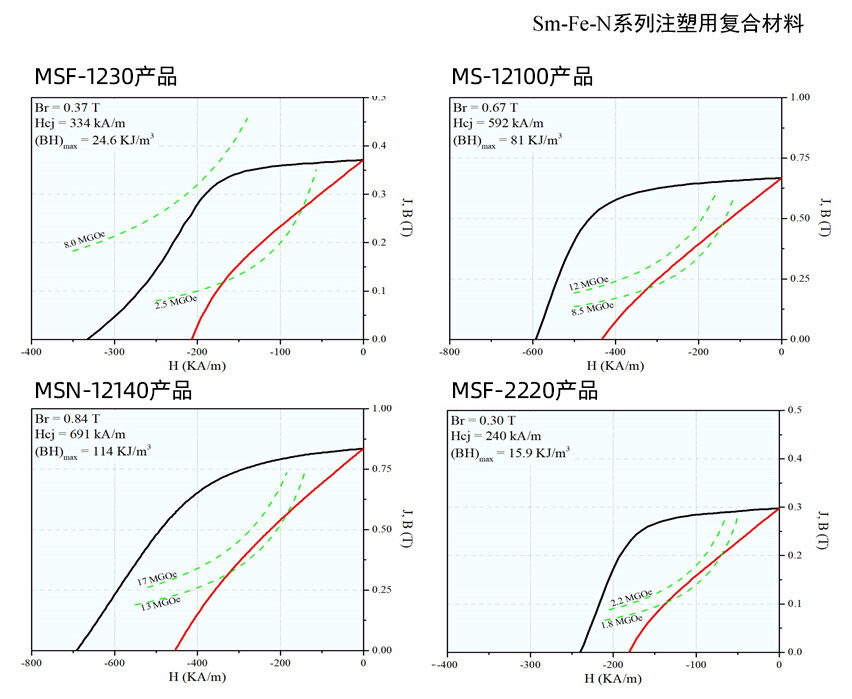

Magnetic Properties of Anisotropic Injection Bonded SmFeN
Sm-Fe-N系列各向异性注塑用颗粒料

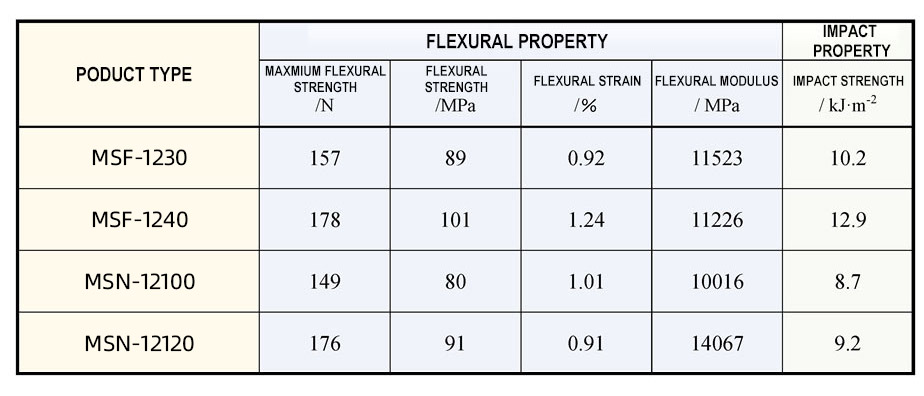

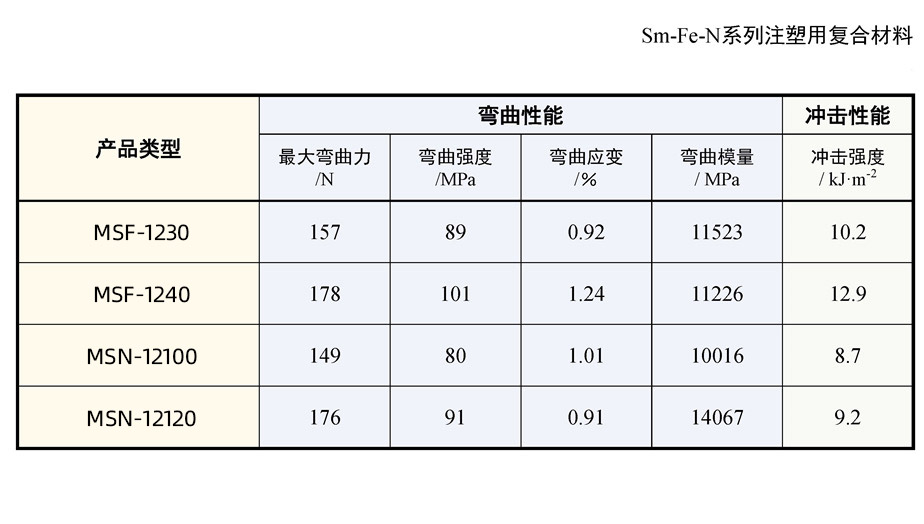

Mechanical Properties of Anisotropic Injection Bonded SmFeN
各类型产品代表性力学强度

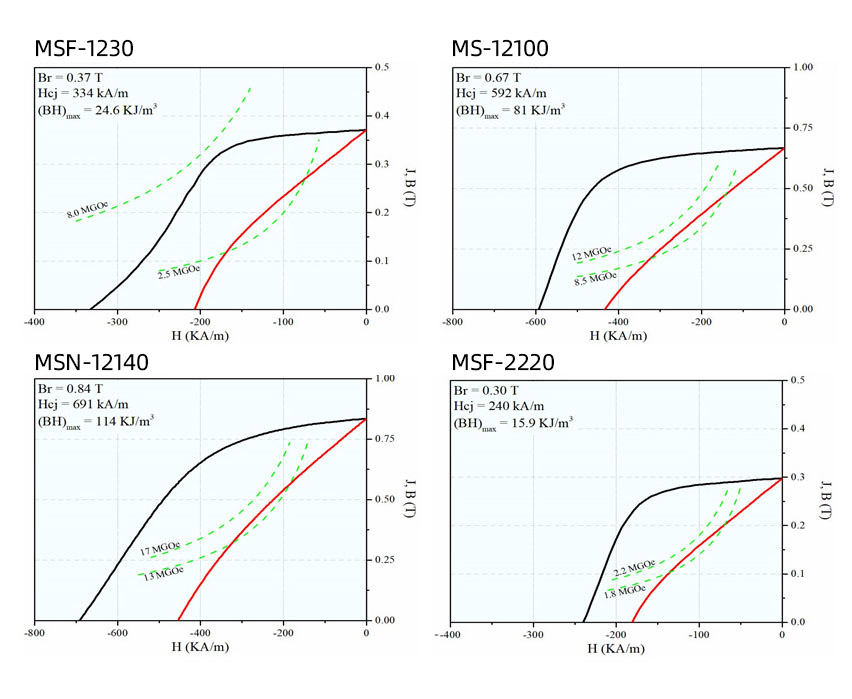

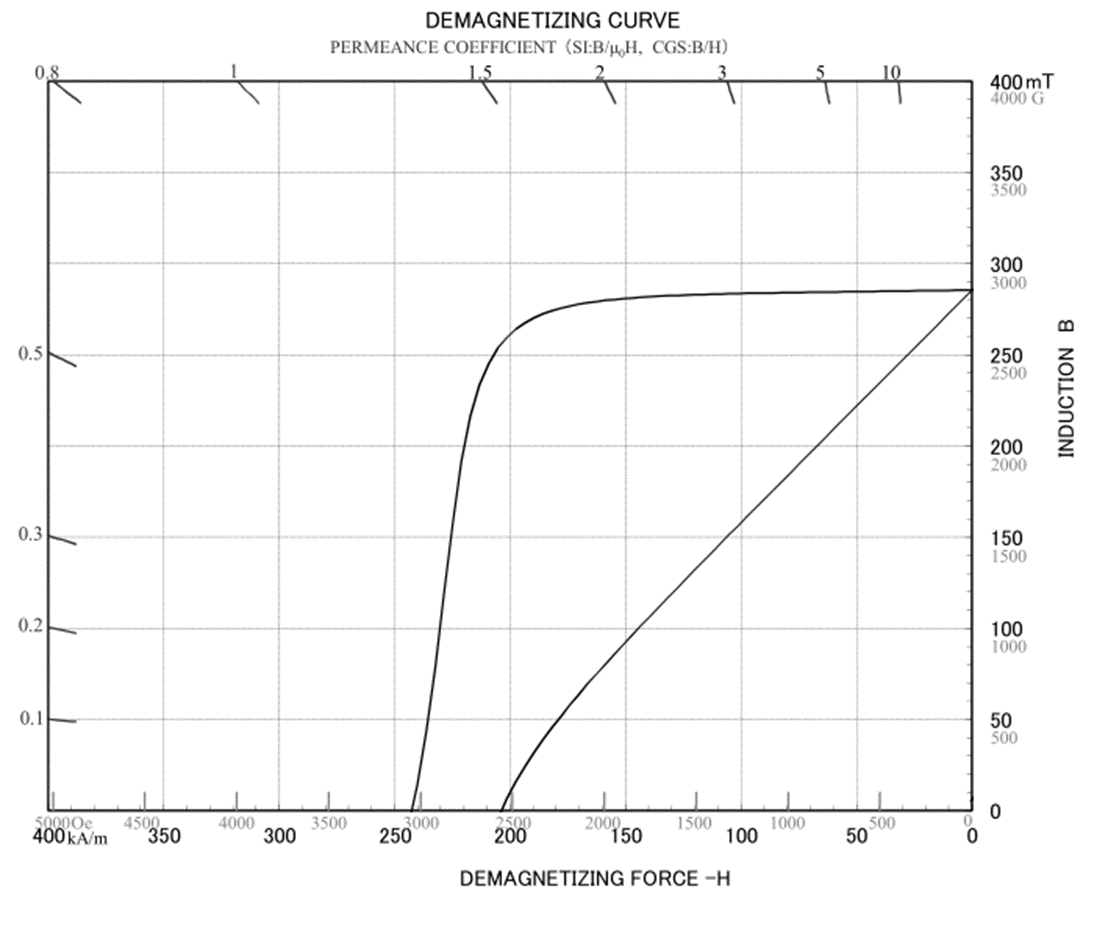

Demagnetizing Curve of Anisotropic Injection Bonded SmFeN
各类型产品代表性退磁曲线
